Part Number: 296302
/
Vendor ID Number: 149
/
Custom:
![6" LED Square Up/Down Outdoor Wall Mount Fixture](/vendors/149/large/p5644_82-30k.jpg "6" LED Square Up/Down Outdoor Wall Mount Fixture")

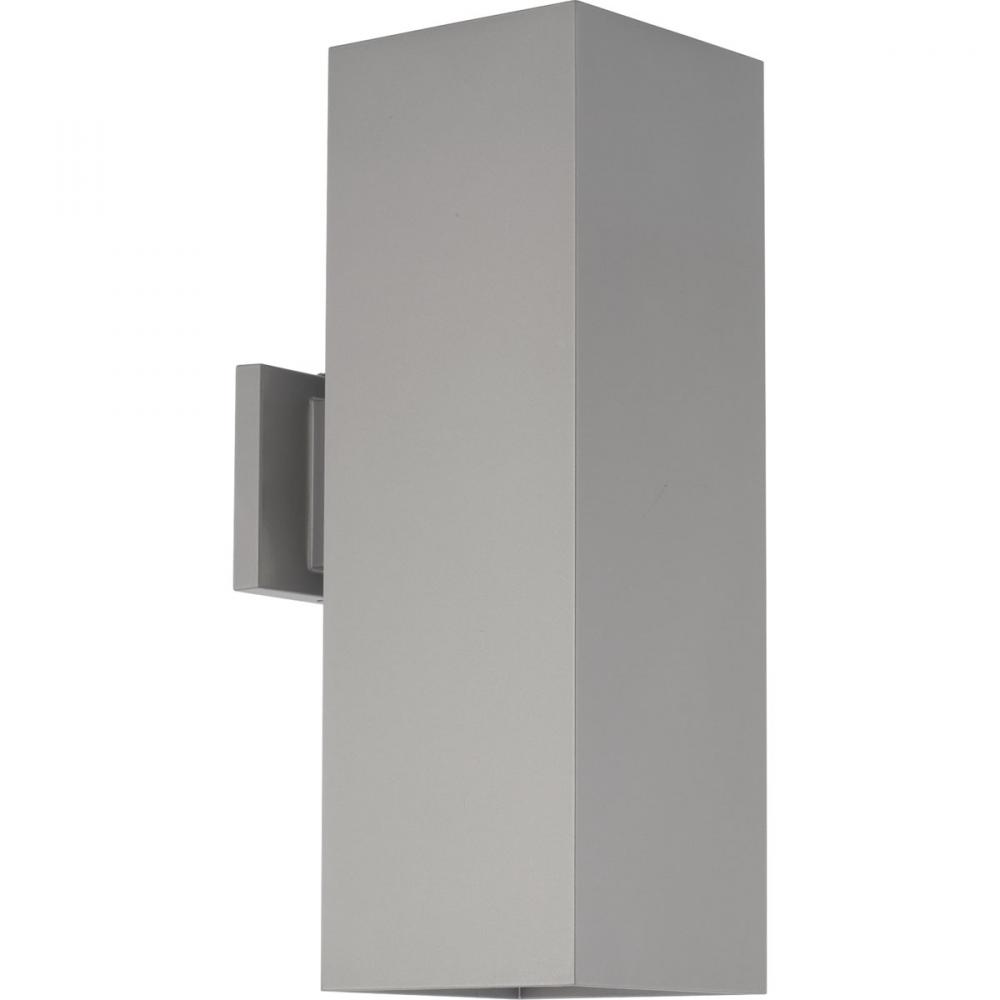

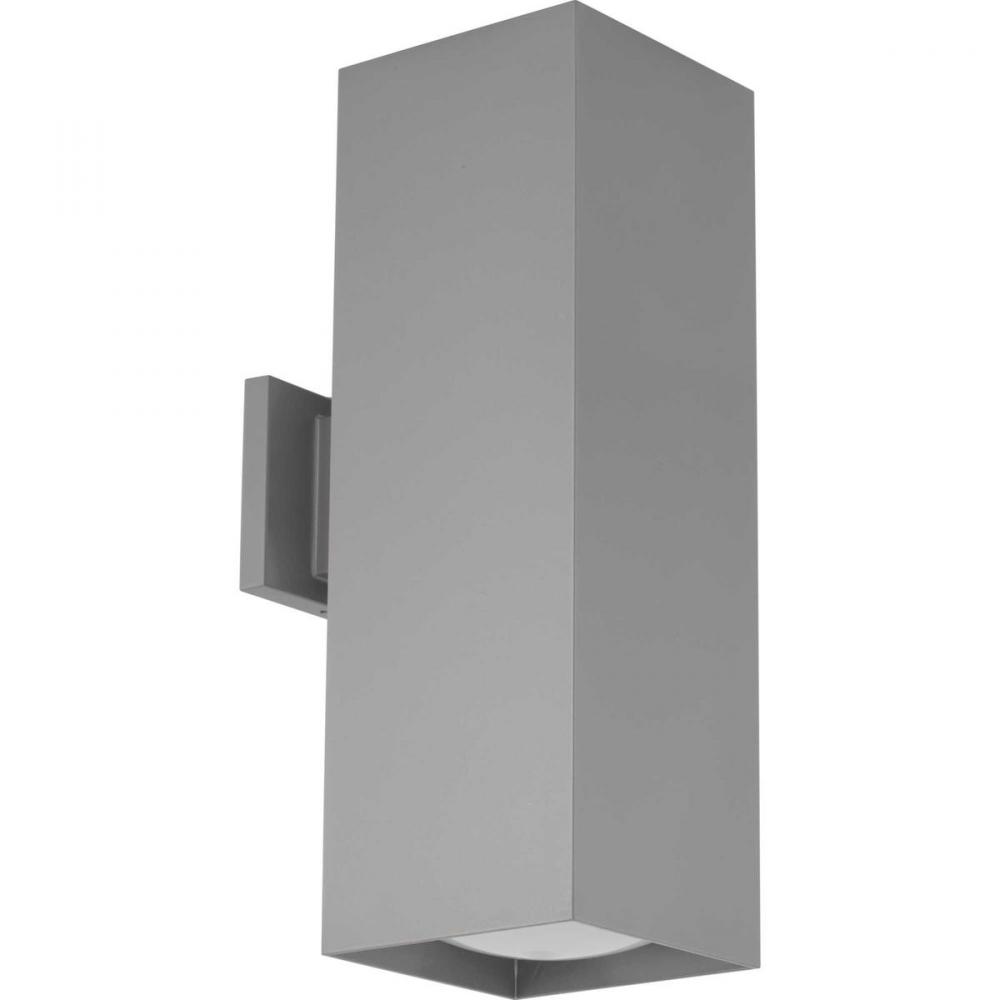

6" LED Square Up/Down Outdoor Wall Mount Fixture
383
66
Pack Of: 1
WAS
$
590
25
283 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 18.00"
Width: 8.88"
Length: 6.00"
Product Overview
6" LED Square Cylinder with heavy-duty aluminum construction, die-cast aluminum wall bracket. UL listed for wet locations. Powder coat for chipping and fading resistance. Metallic Gray finish. Wet location listed when used with P860047 top cover lens (sold separately).
Product Availability
-
Item appears to be in stock and ready to ship
Included Items
Info & Guides
Technical Details
Details
Category:
Sconces
Subcategory:
Wall Lights
Outdoor Wall Lights
Finish:
Gray /vendors/vendorImages gray.jpg
Style:
Contemporary
Transitional
Option:
Energy Efficient
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Outdoor
Wet Rated
Damp Rated
LED
Title 20
Mount Type:
Flush Mount
Location Rating:
Wet Rated
Category:
Outdoor
Finish:
Metallic Gray
Style:
Modern;Transitional
Option:
Damp Rated
Energy Efficient
Title 20
Title 24
Family:
LED Sq Cylinder
Voltage:
120
Number of Bulbs:
2 Bulbs
Backplate Height:
4.00
Backplate Width:
4.03
Bulb Hours:
60000
Bulb Type:
LED
Depth:
8.88
Height To Center of Outlet:
8.00
Introduction Date:
01/16/2017
Kelvin:
3000
Keyword(s):
flush mount;ceiling fixture;ceiling light;led light;energy efficient
Length:
6.00
Lumens / Light Output:
3731
Material:
Die-Cast Aluminum
Ship Carton Height:
21.06
Ship Carton Length:
11.80
Ship Carton Width:
9.06
Ship Weight:
7.35
Special Features:
Metallic Gray finish.;Ideal for a wide variety of interior and exterior applications.;Die-cast aluminum construction with durable powder coated finish;3731 lumens 61.8 lumens/watt per module (delivered);3000K color temperature, 90+ CRI;Wet location listed
Vendor Ship Method:
Non UPS Shippable False
Warranty:
5-year Limited
Weight:
7.35
Wire Included:
6 in
Americans with Disabilities Act:
No
Bulb CRI:
90 CRI
Bulb Included:
Yes
Can be Mounted Up or Down:
No
Canopy Shape:
Square
Certified Listed Location:
Damp Location Listed
Construction Material Main Part:
Construction
Convertible Fixture Includes Both Mounts:
FALSE
Country of Origin:
CN
Dark Sky:
No
Design Series:
No
Dimming Compatability:
Lutron_Diva DVELV-300P;Lutron_Nova T NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600;Leviton_Renoir II AWRMG-EAW;Leviton_6615-P
Dimming Protocol:
ELV/Reverse Phase
Dimming Range:
10%
Energy Efficient:
Yes
Energy Star:
No
Finish Type:
Painted
Frequency Rating:
60 Hz
Grounded Convenience Outlet included:
No
JA8:
No
Lamp Type Actual:
LED
Lamp Type Basic:
Solid State
Lamp Wattage:
29
Lumens per Watt:
61.80
Mount Location:
Wall
MTO:
No
Operating Temperature Celcius Max:
30 ºC
Prop 65:
View
Prop 65 Description:
View
Room Type:
Outdoor
Safety Rating:
cULus
Starting Temperature Minimum:
-30 °C
Sub Brand:
Progress LED
Title 20:
Yes
Title 24:
Yes
Weight of Fixture Exceeds NEC Limits:
No
Width Diameter:
6 in Depth
