Part Number: 571471
/
Vendor ID Number: 149
/
Custom:
![4" Air-Tight IC New Construction Recessed Air-Tight IC Housing](/vendors/149/large/PROG_P804N-N-MD-ICAT_hero_PRODIMAGE_1200.jpg "4" Air-Tight IC New Construction Recessed Air-Tight IC Housing")

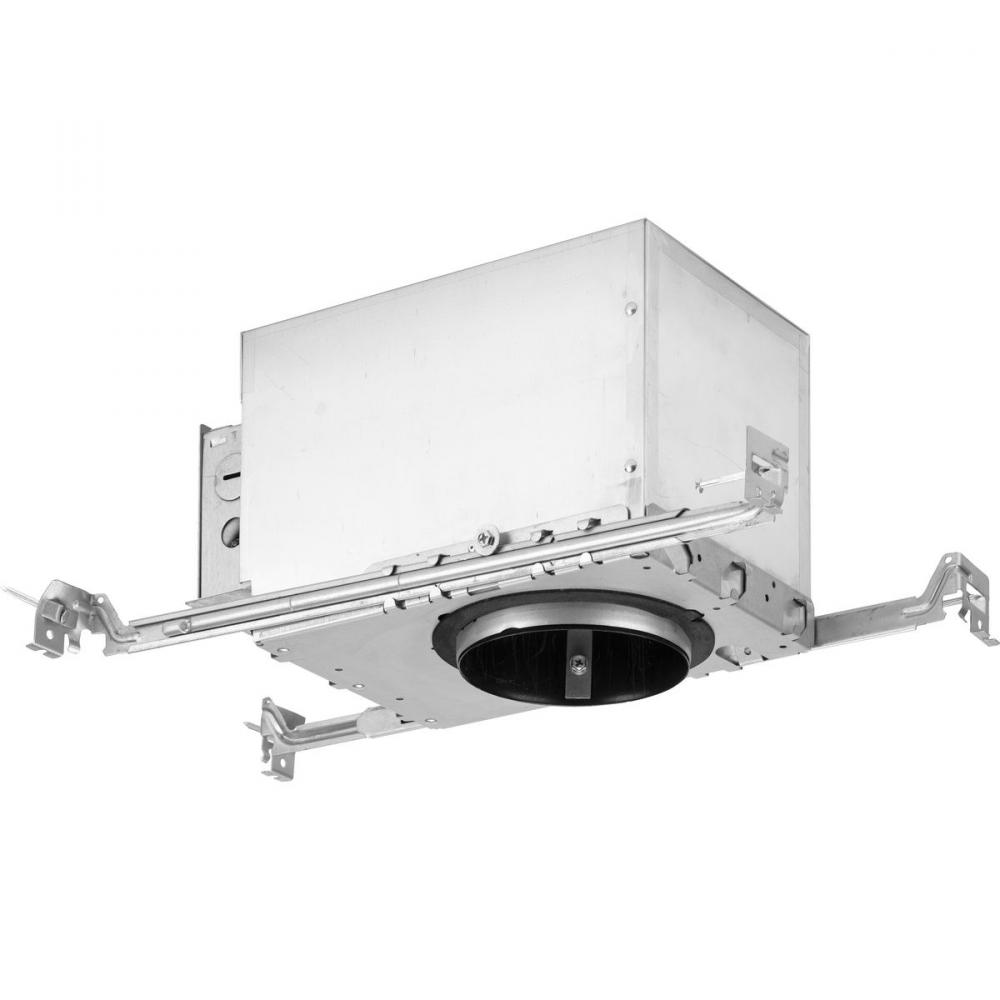

4" Air-Tight IC New Construction Recessed Air-Tight IC Housing
27
30
Pack Of: 1
WAS
$
42
00
3558 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

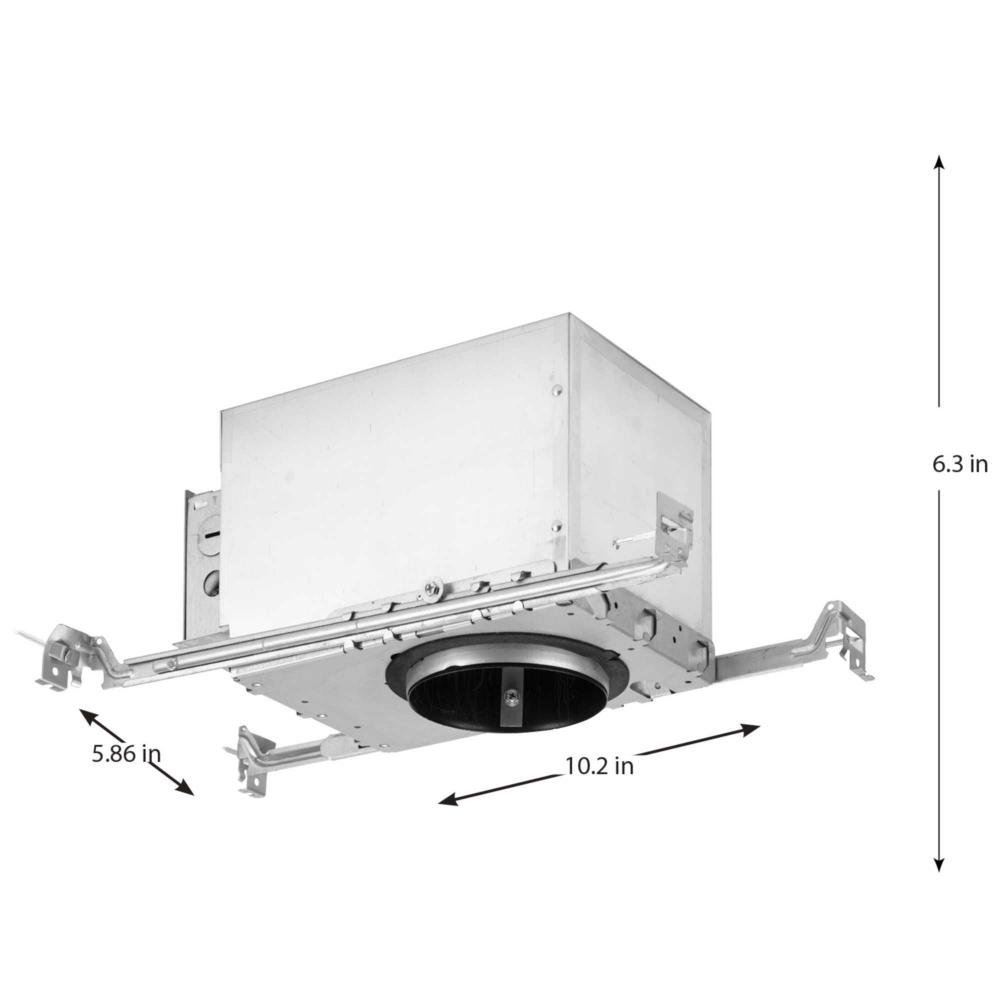

Dimensions
Height: 6.31"
Width: 10.25"
Length: 5.08"
Product Overview
This 4 in. small-aperture Air-Tight IC New Construction Housing provides accent and task lighting for new construction applications and is ideal for those who have easy access above the ceiling. Use with a variety of trims and finishes to create different lighting effects or match any decor. Its gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space, reducing unnecessary HVAC energy usage. The lamp housing compartment can be adjusted to fit ceiling thicknesses from ½ in. to 1 ¼ in. The housing and frame are constructed from die-formed corrosion resistant galvanized steel. An aluminum enclosure box ensures proper heat dissipation, allowing this fixture to be used in contact with insulation. It features a universal J-box with snap-out sides and provided with push in connectors to make wiring quick and easy. Bar hangers have a maximum span of 24 in. and are scored in two locations for fast, clean breaking, allowing housing installation in very narrow joist spacings. Pre-installed framing nails on the bar hangers make installation quick and efficient. Hanger bars include t-bar mounting clamps for use in suspended t-grid ceilings. The integrated temperature sensor prevents lamp overheating, allowing this fixture to be used with a range of lamp shapes and wattages. It is UL and CUL listed for damp locations and IC installation. The housing is compatible with a variety of trims and finishes to create different lighting effects or to easily match any decor.
Product Availability
-
Item appears to be in stock and ready to ship
Info & Guides
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Recessed Housing New
Style:
Traditional
Option:
Energy Efficient
Damp Rated
Prop 65 /vendors/vendorImages prop65.png
Mount Type:
Flush Mount
Location Rating:
Damp Rated
Category:
Recessed
Finish:
Unfinished
Style:
Utilitarian;Traditional;Modern;Transitional
Option:
Damp Rated
Energy Efficient
Prop 65
Family:
4" Recessed Housing
Voltage:
120
Bulb Type:
PAR20
Keyword(s):
4 inch housing recessed functional light lights lighting fixture fixtures new construction airtight residential commercial medium base bulb bulbs lamp lamps led incandescent dimmable 1 one
Length:
5.08
Material:
Steel
Ship Carton Height:
6.5
Ship Carton Length:
14.00
Ship Carton Width:
8.37
Ship Weight:
3.05
Special Features:
The housing and frame are constructed from die-formed corrosion resistant galvanized steel;Its gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space, reducing unnecessary HVAC energy usage, and the lamp housing compart
Warranty:
1-Year Limited Warranty
Weight:
3.24
Bulb Base:
E26
Bulb Included:
No
Can be Mounted Up or Down:
No
Certified Listed Location:
Damp Location Listed
Construction Material Main Part:
Housing
Construction Material Secondary:
Steel
Construction Material Secondary part:
construction
Convertible Fixture Includes Both Mounts:
No
Country of Origin:
CN
Dark Sky:
No
Energy Efficient:
Yes
Energy Star:
No
Finish Type:
Unfinished
Grounded Convenience Outlet included:
No
JA8:
No
Lamp Type Basic:
Incandescent
Lamp Wattage:
50
Mount Location:
Ceiling joists, or in suspended Ceilings
Post Top Fits Standard:
No
Prop 65:
View
Prop 65 Description:
View
Quick Install Canopy:
No
Quick Link Connector:
No
Room Type:
Bathroom;Bedroom;Bonus Room;Closets;Garage;Great Room;Kitchen;Living Room;Laundry;Utility
Safety Rating:
cULus
Title 24:
No
Weight of Fixture Exceeds NEC Limits:
No
