Part Number: 612061
/
Vendor ID Number: 81
/
Custom:

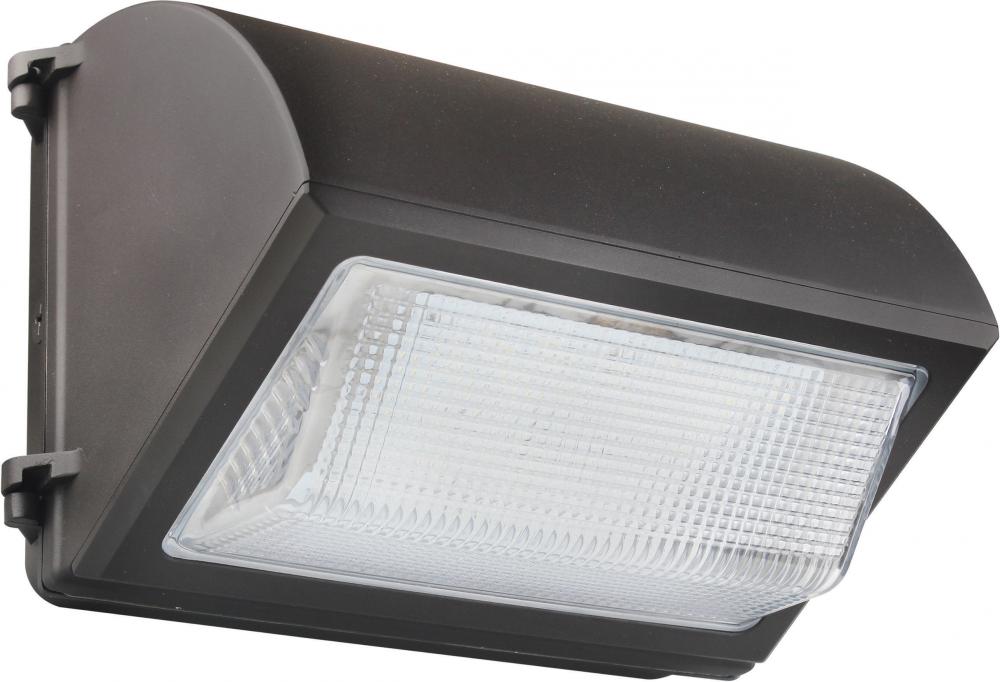

LED Cutoff Wall Pack - 35W - 5000K - Bronze Finish - 100-277V
165
95
Pack Of: 1
WAS
$
255
30
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 9.38"
Width: 14.50"
Finish
Bronze
Product Overview
LED Cutoff Wall Pack; 35W; 5000K; Bronze Finish; 100-277V
Product Availability
-
Item has been discontinued
Technical Details
Details
Category:
Exterior
Subcategory:
Wall Lanterns
Finish:
Bronze /vendors/vendorImages bronze.jpg
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
Bronze /vendors/vendorImages bronze.jpg
Category:
Wall Pack
Sub Category:
Cutoff
Style:
Utility
Additional Info:
Type II Lighting Distribution
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Natural Light
Dimmable:
Non-Dimmable
Each Height:
12.6
Each Length:
15.7
Each Width:
11.8
Lumens:
4990L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.350-0.126A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
110
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
China
CRI:
80+
Each Cube:
1.3509
Each Quantity:
1
Efficacy:
142.57 LPW
FCC Compliant:
Yes
Feature 1:
Natural light
Feature 2:
Commercial LED
Feature 3:
Wet rated for outdoor use
Feature 4:
W:14.50" H:9.38" E:9.88"
Feature 5:
Wall mount, Bronze
Finish Family:
Bronze
Incandescent Equivalent:
100W-150W
Indoor Outdoor:
Outdoor
IP Rating:
IP65
JA8 Compliant:
No
Long Description:
The NUVO 65-252 Cutoff 35-watt, LED Wall pack fixture offers natural light with a 110 degree beam spread in a bronze finish. This fixture has an optional sensor available as an add-on, and is suitable for use on commercial buildings. Durable and wet locati
Mounting Procedure:
Wall
Operating Frequency:
50/60Hz
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Optional Add-On
Power Factor:
0.9
Quantity In Pack:
1
Rec Spacing Between Fixtures:
6.56 ft. to 9.84 ft.
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
The NUVO Cutoff 35-watt, LED Wall pack fixture offers natural light with a 110 degree beam spread in a bronze finish. This fixture has an optional sensor available as an add-on, and is suitable for use on commercial buildings. Durable and wet location rate
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
LED CUTOFF WALL PACK 35W/5K
Temperature (CCT):
5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Weight Lb.:
8.380000000000001
