Part Number: 294747
/
Vendor ID Number: 149
/
Custom:
Endorse Collection One-Light Small Wall Lantern
179
99
Pack Of: 1
WAS
$
267
00
142 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

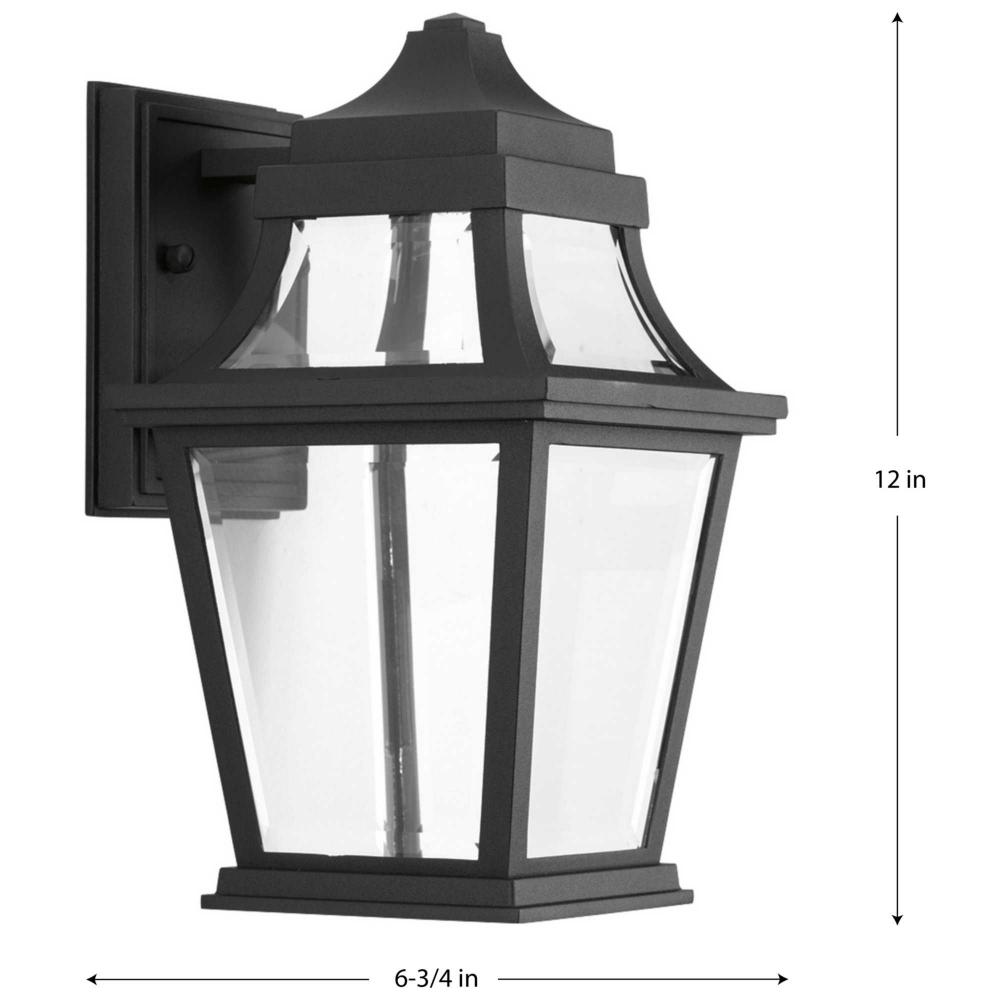

Dimensions
Height: 12.00"
Width: 7.63"
Length: 6.75"
Product Overview

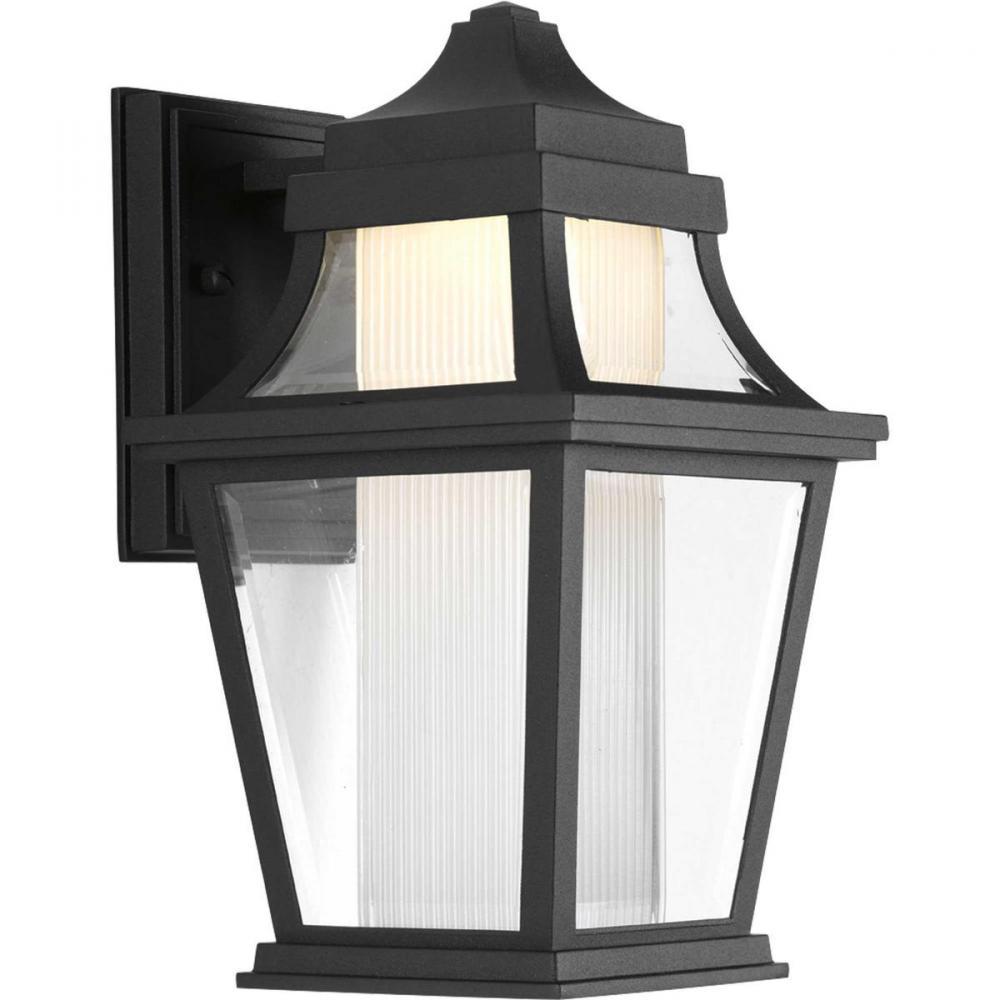

Endorse celebrates the traditional form of a gas-powered coach light with illumination from an LED source. A die-cast aluminum, powdered coated frame created and intriguing visual effect with the clear beveled glass. An optional fluted glass column is offered as an accessory (P8774-31). 3000K, 90+ CRI, 623 lumens (source).
Product Availability
-
Item appears to be in stock and ready to ship
Included Items
Info & Guides
Technical Details
Details
Category:
Exterior
Subcategory:
Wall Lanterns
Finish:
Black /vendors/vendorImages black.jpg
Style:
Traditional
Transitional
Option:
Dark Sky
Energy Efficient
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Outdoor
Wet Rated
LED
Title 20
Glass Finish or Style:
Clear
Mount Type:
Flush Mount
Location Rating:
Wet Rated
Wattage:
9w
Category:
Outdoor
Finish:
Textured Black
Style:
New Traditional;Traditional;Transitional
Option:
Dark Sky
Energy Efficient
Energy Star
Title 20
Title 24
Wet Rated
Family:
Endorse LED
Glass:
Clear
Voltage:
120
Number of Bulbs:
1 Bulbs
Backplate Height:
5.88
Backplate Width:
4.50
Bulb Hours:
60000
Bulb Type:
LED
Depth:
7.63
Height To Center of Outlet:
3.25
Introduction Date:
01/01/2015
Kelvin:
3000
Keyword(s):
lantern;exterior light;outdoor light;led
Length:
6.75
Material:
Die-Cast Aluminum
Ship Carton Height:
14.88
Ship Carton Length:
10.25
Ship Carton Width:
9.00
Ship Weight:
4.88
Special Features:
Black finish.;Clear beveled glass panels.;Traditional form.;Intriguing visual effect.;Meets California Title 24 high efficacy requirements for outdoor use only.;623 lumens 69.2 lumens/watt per module (source);3000K color temperature, 90+ CRI.
Vendor Ship Method:
Non UPS Shippable False
Warranty:
5-year Limited
Weight:
3.39
Wire Included:
6 in
Americans with Disabilities Act:
No
Backplate Depth:
0.88
Bulb CRI:
90 CRI
Bulb Included:
Yes
Can be Mounted Up or Down:
No
Canopy Shape:
Rectangle
Certified Listed Location:
Wet Location Listed
Construction Material Main Part:
Construction
Country of Origin:
CN
Dark Sky:
Yes
Design Series:
No
Dimming Compatability:
Lutron_Nova T NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600
Dimming Protocol:
ELV/Reverse Phase
Energy Efficient:
Yes
Energy Star:
Yes
Finish Type:
Powder Coat Paint
Frequency Rating:
60 Hz
Glass Height:
2.5625
Glass Length:
4.5625
Glass Shape:
Beveled Panels (Top)
Glass Width:
0.1875
Grounded Convenience Outlet included:
No
JA8:
No
Lamp Type Actual:
LED
Lamp Type Basic:
Solid State
Lamp Wattage:
9
Lens Shade Material:
Glass
Mount Location:
Wall
MTO:
No
Operating Temperature Celcius Max:
30 °C
Prop 65:
View
Prop 65 Description:
View
Room Type:
Outdoor
Safety Rating:
cCSAus
Starting Temperature Minimum:
-30 °C
Sub Brand:
Progress LED
Title 20:
Yes
Title 24:
Yes
Weight of Fixture Exceeds NEC Limits:
No
Width Diameter:
6.75 in Depth
