Part Number: K72Z
/
Vendor ID Number: 90
/
Custom:

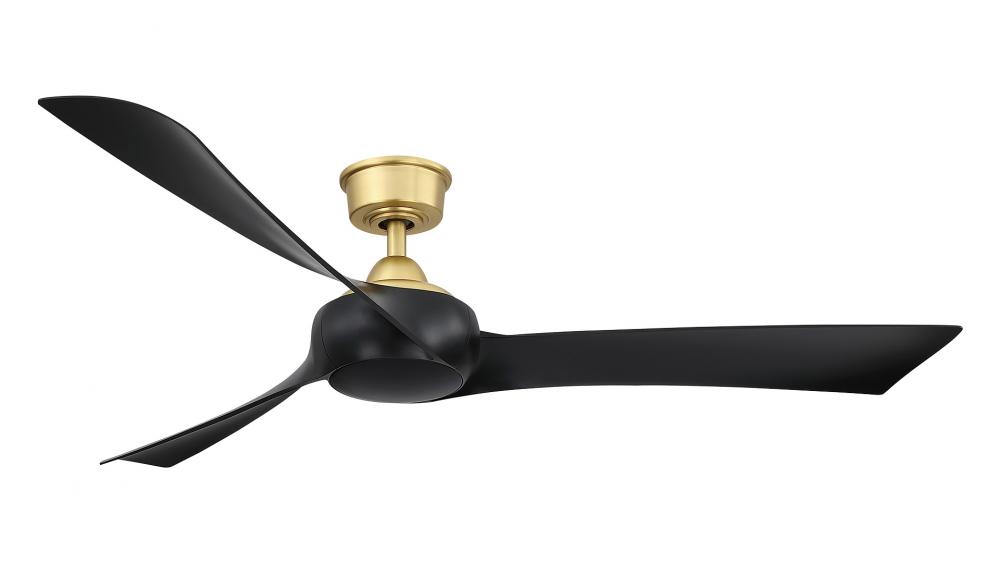

Custom Motor - Brushed Satin Brass
458
23
Pack Of: 1
WAS
$
704
97
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 12.46"
Width: 44.00"
Length: 44.00"
Product Overview
Motor Only - Brushed Satin Brass
Blades Sold Separately
Damp Rated
Reversible airflow for multi-season use
Light Kit Sold Separately
Remote Control Included
Can be controlled using the Fanimation Bluetooth fanSync app
Blades Sold Separately
Damp Rated
Reversible airflow for multi-season use
Light Kit Sold Separately
Remote Control Included
Can be controlled using the Fanimation Bluetooth fanSync app
Product Availability
Additional Information
7141 Cfm On High
Compatible with smart home devices using the Wi-Fi fanSync app
Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
Energy Star Most Efficient 2022
Set of (3) Damp Rated blades with multiple finish options available and 18 watt LED CCT Select light kit available (sold separately). Compatible with Wrap Custom blade sets with sweeps between 44 and 60 inches
Tr305 Handheld Remote With 23a Battery Included
Info & Guides
Technical Details
Details
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
Black /vendors/vendorImages black.jpg
Brass /vendors/vendorImages brass.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
Damp Rated
Number of Blades:
3 Blades
Wattage:
8w
Smart Home:
Yes
Category:
Fan-Multi
Finish:
Brushed Satin Brass
Option:
Damp Rated
Energy Star
Family:
Wrap Custom
Voltage:
120V
Air Flow CFM:
7141
Air Flow Efficiency:
200
Blade Pitch:
Varied
Canopy:
6.14 Dia, 2.55 H
Harmonized Codes:
8414.51.3000
Length:
44, 48, 52, 56, 60
Max Width:
60
Motor Size:
158 X 22
Motor Type:
DC
Ship Carton Height:
7.6
Ship Carton Length:
16.34
Ship Carton Width:
8.86
Ship Weight:
14.99
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
12.13
Airflow Efficiency Low:
404
Airflow Efficiency Medium:
552
Avg Airflow Efficiency:
211
Avg CFM Energy:
5114
Avg Energy Use Watts:
24
Avg Estimated Yearly Energy Cost:
7
Avg Estimated Yearly Energy Cost on HIGH:
10
Canopy Diameter:
6.14
Canopy Height:
2.55
Cap Included:
Yes
Case Quantity:
1
CEC Uploaded:
Yes
Ceiling To Blade Edge:
11.83
Ceiling to Bottom No LK:
12.46
Ceiling to Bottom with LK:
13.05
CFM Low:
728
CFM Medium:
4359
Compatible Accessories:
DR1-12BS, DR1-18BS, DR1-24BS, DR1-36BS, DR1-48BS, DR1-60BS, DR1-72BS, DR1-CPBS, SCB1-52
Compatible Blades:
BPW8530-44BL, BPW8530-44BN, BPW8530-44DWA, BPW8530-44N, BPW8530-44WE, BPW8530-44WW, BPW8530-48BL, BPW8530-48BN, BPW8530-48DWA, BPW8530-48N, BPW8530-48WE, BPW8530-48WW, BPW8530-52BL, BPW8530-52BN, BPW8530-52DWA, BPW8530-52N, BPW8530-52WE, BPW8530-52WW
Compatible Light Kits:
LK8530BS
Compatible Wall Controls:
TW306
Country of Origin:
China
Current Draw High:
0.49
Current Draw Low:
0.04
Current Draw Medium:
0.13
Damp Rated:
Yes
DOE Classification:
LSSD
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Exempt from DOE Procedure:
No
Fan Energy Star:
Yes
Housing Diameter:
8.88
Included Control:
TR305
Included Control Type:
Handheld
Leadwire:
80
Max Ceiling Slope:
27
Max Watt:
36
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
138
RPM Low (II):
29
RPM Medium (IV):
88
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60HZ
Watts Low:
2
Watts Medium:
8
