Item Sales Info
Part Number: 296231
/
Vendor ID Number: 149
/
Custom:
![7-1/4" Round LED Surface Mount](/vendors/149/large/p8222_28-30k.jpg "7-1/4" Round LED Surface Mount")

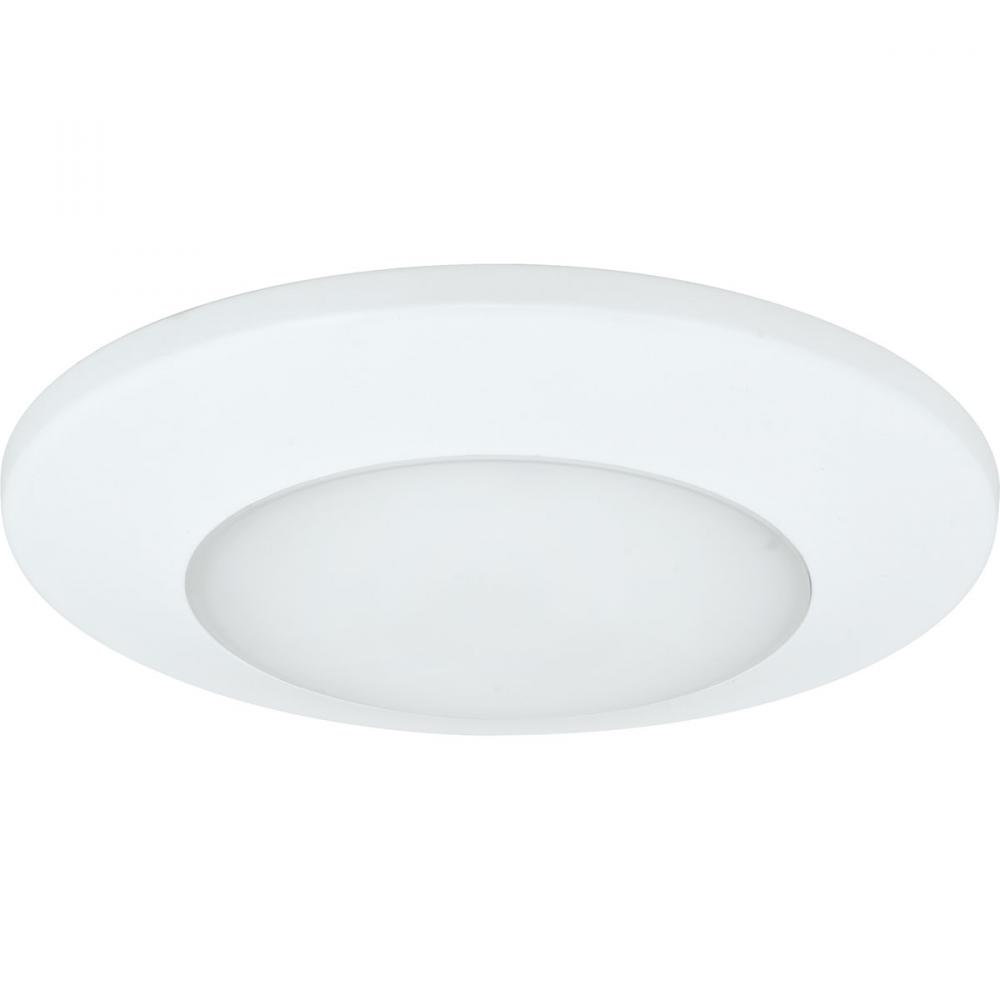

7-1/4" Round LED Surface Mount
65
33
Pack Of: 1
WAS
$
100
50
55777 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

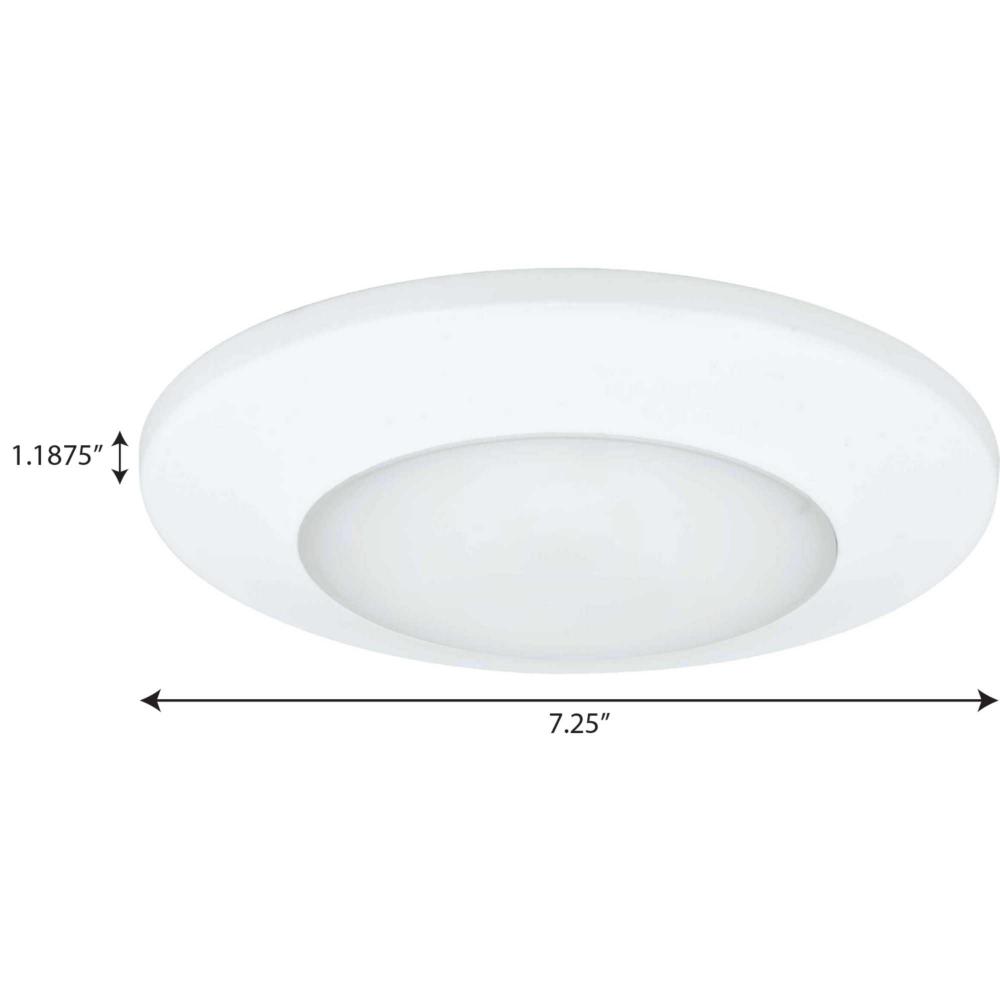

Dimensions
Height: 1.19"
Width: 7.25"
Length: 7.25"
Product Overview
The P8222 delivers a solution for flush mount, for both residential and commercial markets. In addition, the P8222 is wet located, Title 24 - JA8 - 2019 and is a cost effective solution for fire rated applicaiton. The P8222 luminaire unites performance, cost and safety benefits.
Product Availability
-
Item appears to be in stock and ready to ship
Included Items
Info & Guides
Technical Details
Details
Category:
Exterior
Flush Mounts
Subcategory:
Exterior Flush mounts
Outdoor Flush Mounts
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Transitional
Option:
Energy Efficient
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Wet Rated
LED
Title 20
Mount Type:
Flush Mount
Location Rating:
Wet Rated
Category:
Close-to-Ceiling
Finish:
White
Style:
Modern;Transitional
Option:
Energy Efficient
Energy Star
Title 20
Title 24
Wet Rated
Family:
LED Flush Mount
Glass:
White
Voltage:
120
Number of Bulbs:
1 Bulbs
Bulb Hours:
50000
Bulb Type:
LED
Introduction Date:
01/01/2017
Kelvin:
3000
Keyword(s):
flushmount;ceiling fixture;ceiling light;led light;energy efficient
Length:
7.25
Lumens / Light Output:
1170
Material:
Die-Cast Aluminum
Ship Carton Height:
7.50
Ship Carton Length:
7.50
Ship Carton Width:
2.50
Ship Weight:
1.16
Special Features:
White finish.;Diffused polycarbonate lens controls direct glare from the LEDs.;Simple snap in installation for J-Box.;Die-cast aluminum construction with a powder coat paint finish.;1170 lumens (delivered), 90CRI, 3000K;Flicker-free dimming to 10% brightne
Vendor Ship Method:
Non UPS Shippable False
Warranty:
5-year Limited
Weight:
1.28
Wire Included:
6 in
Americans with Disabilities Act:
No
Bulb Base:
LED
Bulb CRI:
90 CRI
Bulb Included:
Yes
Can be Mounted Up or Down:
No
Canopy Shape:
Round
Certified Listed Location:
Wet Location Listed
Construction Material Main Part:
Construction
Convertible Fixture Includes Both Mounts:
FALSE
Country of Origin:
CN
Dark Sky:
No
Design Series:
No
Dimming Compatability:
Lutron_Ariadni AYCL-153P;Lutron_AY-600;Lutron_Toggler TGCL-153P;Leviton_SureSlide 6674;Leviton_SureSlide 6672
Dimming Protocol:
Triac/Forward Phase
Dimming Range:
10%
Energy Efficient:
Yes
Energy Star:
Yes
Finish Type:
Painted
Frequency Rating:
60 Hz
Glass Shape:
Lens
Grounded Convenience Outlet included:
No
JA8:
2019
Lamp Type Actual:
LED
Lamp Type Basic:
Solid State
Lamp Wattage:
17.3
Lens Shade Material:
Polycarbonate
Lumens per Watt:
67.60
Mount Location:
Flush-Mount
MTO:
No
Operating Temperature Celcius Max:
30 °C
Prop 65:
View
Prop 65 Description:
View
Room Type:
Bathroom;Bedroom
Safety Rating:
cCSAus
Starting Temperature Minimum:
-30 °C
Sub Brand:
Progress LED
Title 20:
Yes
Title 24:
Yes
Weight of Fixture Exceeds NEC Limits:
No
Width Diameter:
7.25 in dia.
