Part Number: K800 / Vendor ID Number: 90 / Custom:

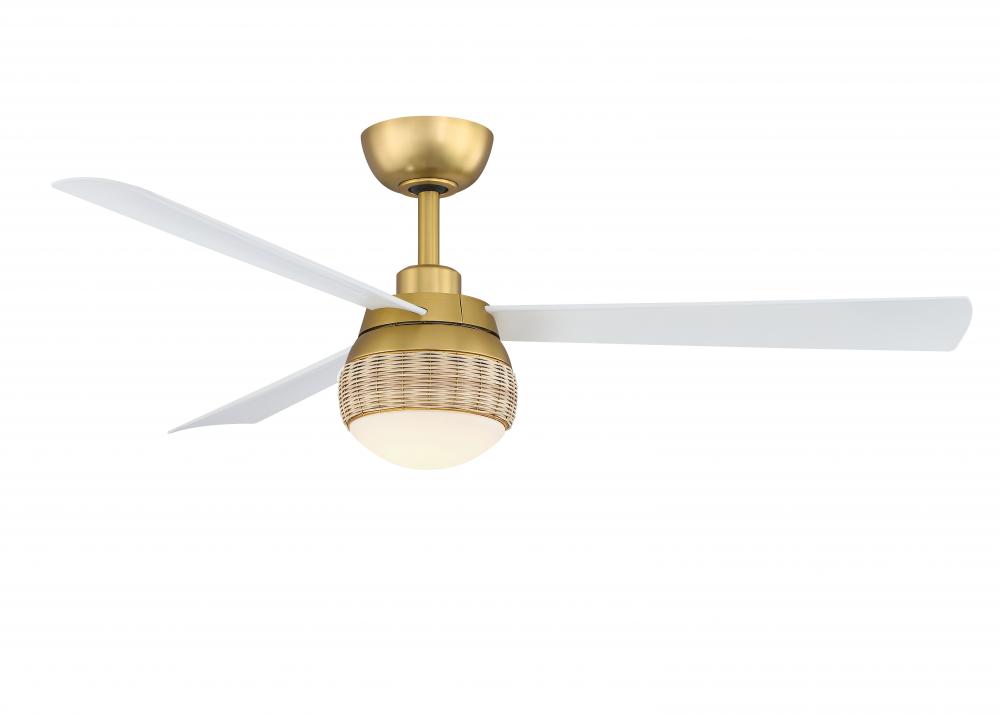

52" LED Patio Fan - BS with MW Blades

52" LED Patio Fan - BS with MW Blades

360
73
Pack Of: 1
WAS
$
554
97
Call for Availability
Qty
Product Specification
Dimensions
Height: 16.29"
Width: 52.00"
Length: 52.00"
Product Overview
Return to the tropics by bringing natural and textural elements to a soft contemporary design giving Paget its own unique personality. Damp Rated Patio Fan in Brushed Satin Brass with Matte White
Blades. Integrated 18W LED Light with Opal Frosted Glass and Natural Wicker Details. Includes TR500 hand-held remote control and 6" down rod.
Product Availability
Additional Information
3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
Damp Rated For Indoor Or Outdoor Use
Limited Lifetime Warranty
Set of (3) 52 inch blades with multiple finish options and 18 watt LED light kit with bulb included
Tr500 Handheld Remote With 23a Battery Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
Info & Guides
Technical Details
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Brass /vendors/vendorImages brass.jpg
Option:
LED
Location Rating:
Damp Rated
Category:
Fan-Uni
Finish:
Brushed Satin Brass
Family:
Paget
Glass:
Opal Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow CFM:
5429
Air Flow Efficiency:
97
Blade Finish:
Matte White
Blade Pitch:
13
Blade Span:
52
Bulb Type:
LED Module
Canopy:
6.5 Dia x 2.58 H
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1700
Motor Size:
AC 153 X 17
Motor Type:
AC
Ship Carton Height:
11.34
Ship Carton Length:
29.72
Ship Carton Width:
10.83
Ship Weight:
19.4
Sold By:
Each
Warranty:
Limited Lifetime Warranty
Weight:
13.45
Airflow Efficiency Low:
184
Airflow Efficiency Medium:
126

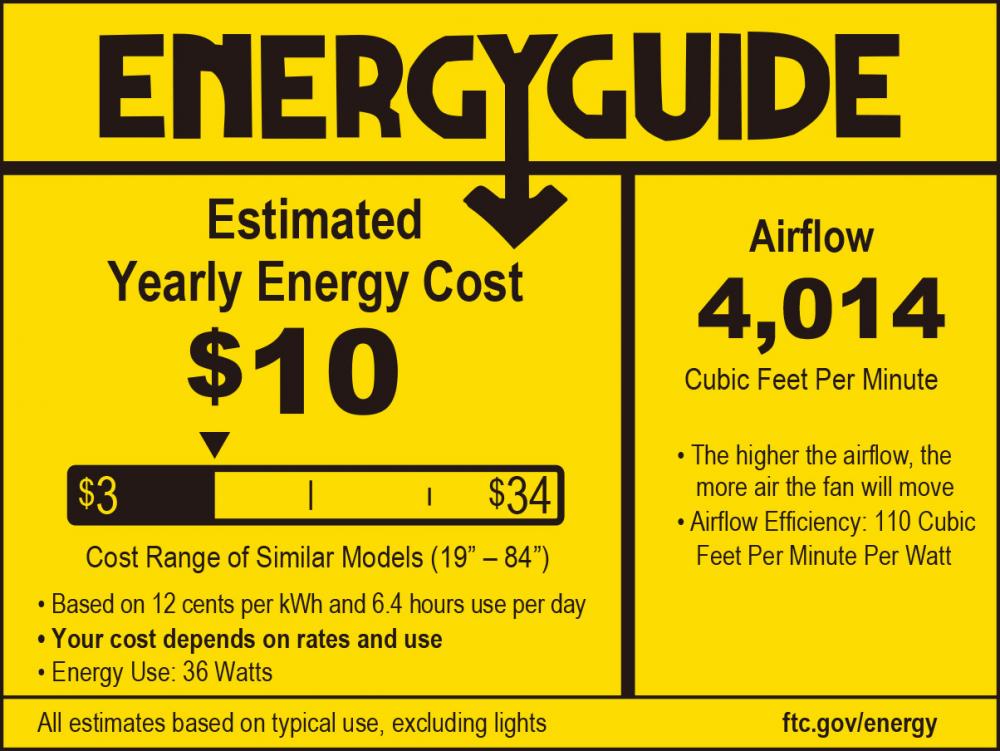

Avg Airflow Efficiency:
110
Avg CFM Energy:
4014
Avg Energy Use:
36
Avg Estimated Yearly Energy Cost:
10
Avg Estimated Yearly Energy Cost on HIGH:
16
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
52
Bulb Base:
Connector Pin
Bulb CRI:
90
Cap Included:
No
Carton Cubic Feet:
2.1123
Case Height:
11.34
Case Length:
29.72
Case Quantity:
1
Case Weight Pounds:
19.4
Case Width:
10.83
CEC Uploaded:
Yes
Ceiling To Blade Edge:
9.7
Ceiling To Bottom (With Light Kit):
16.29
CFM Low:
2410
CFM Medium:
3903
Country of Origin:
China
Current Draw High:
0.47
Current Draw Low:
0.23
Current Draw Medium:
0.35
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
6
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
8.46
Included Control:
TR500
Included Control Type:
Handheld
Leadwire:
54
Light Kit Energy Star 4:
No
Location Rating:
Damp
Max Ceiling Slope:
27
Max Wattage:
18 W
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High:
160
RPM Low:
73
RPM Medium:
119
Safety Rating:
UL Approved
Voltage Cycles:
60HZ
Watts High:
56
Watts Low:
13
Watts Medium:
31
