Part Number: A9C74
/
Vendor ID Number: 81
/
Custom:

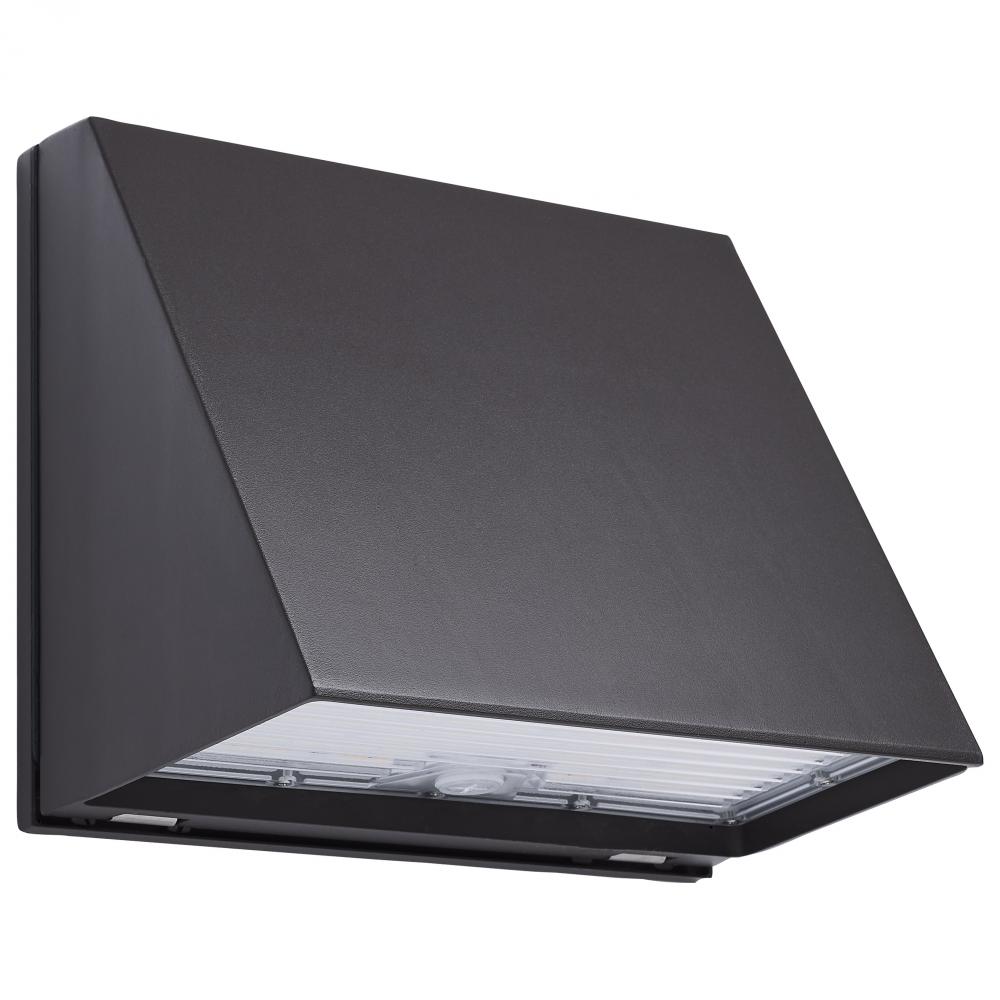

20/40/60 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 Volt
154
05
Pack Of: 1
WAS
$
237
00
249 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

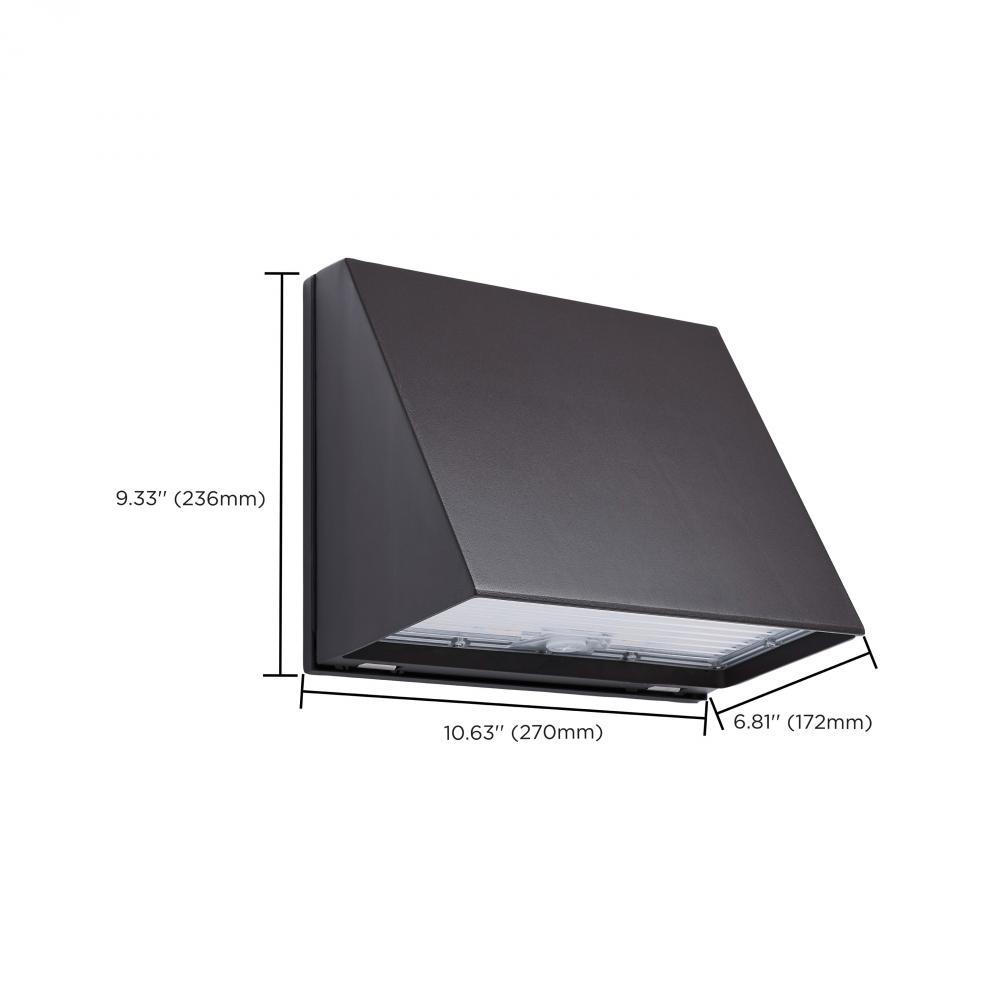

Dimensions
Height: 9.36"
Width: 10.65"
Finish
Bronze
Product Overview
20/40/60 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 Volt
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Exterior
Subcategory:
Wall Lights
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
Bronze /vendors/vendorImages bronze.jpg
Category:
Wall Pack
Sub Category:
Full Cutoff
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
8.460000000000001
Each Length:
13.27
Each Width:
12.64
Lumens:
3056L-8421L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.167-0.058/0.333-0.115/0.500-0.173A
ANSI Base:
Integrated
Beam Angle:
108
B_U_G_Rating:
B2-U0-G2
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium
DLC Primary Use:
Outdoor Full-Cutoff Wall-Mounted Area Luminaires
Each Cube:
0.8212
Each Quantity:
1
Efficacy:
152.80-158.75/144.08-151.80/131.75-140.35 LPW
FCC Compliant:
Yes
Feature 1:
Full Cutoff with Zero Uplight
Feature 10:
5 Year Warranty
Feature 2:
B2-U0-G2 Rating
Feature 3:
CCT and Wattage Selectable
Feature 4:

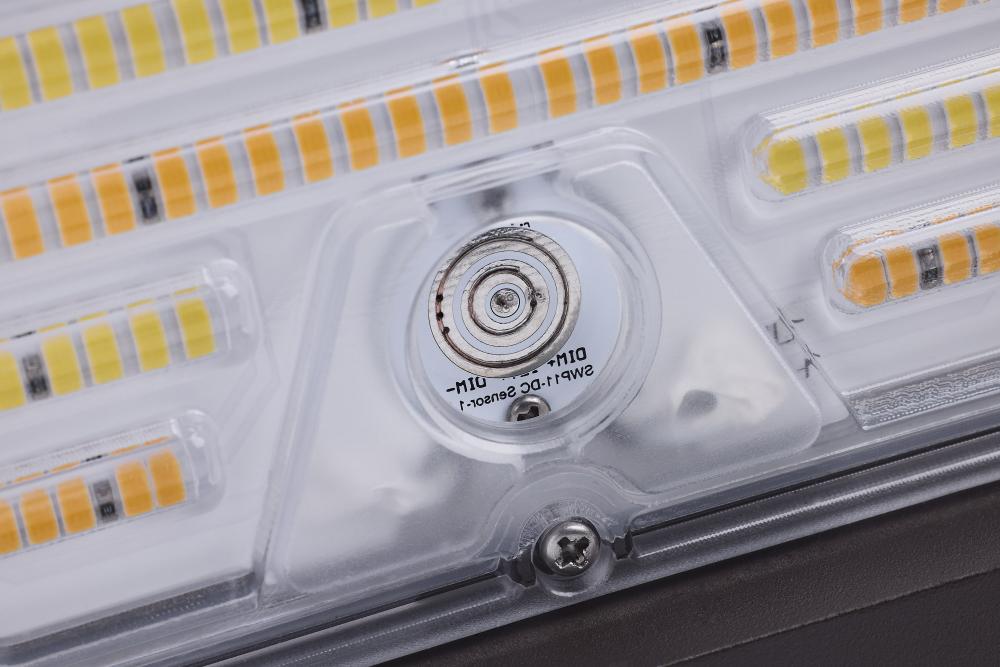

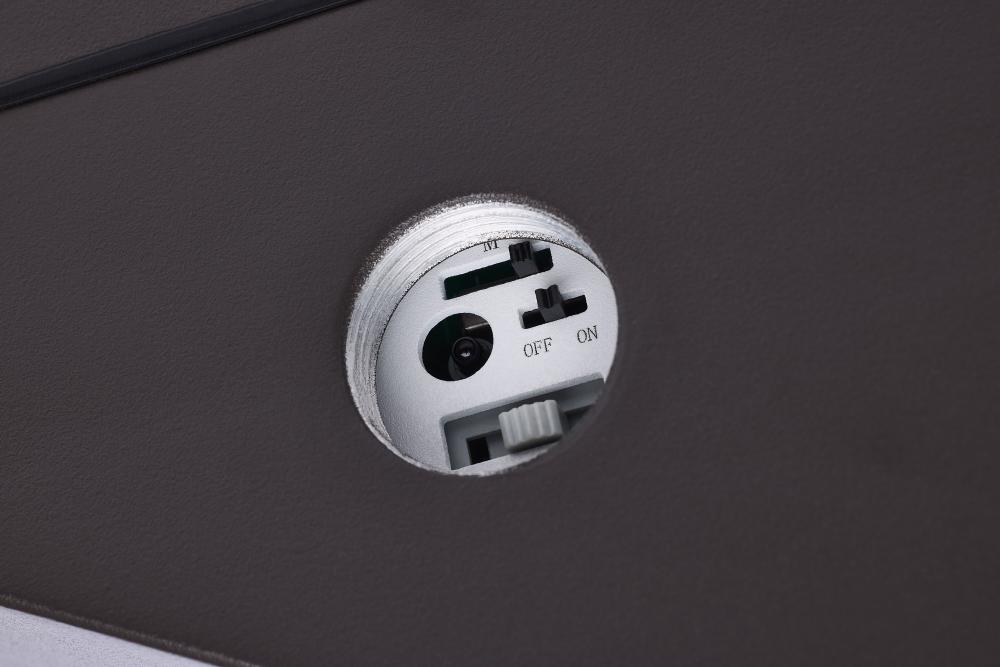

Integrated Sensor Port
Feature 5:
Integrated By-passable Photocell
Feature 6:
Range Voltage 120-347V
Feature 7:
IP65 Rated
Feature 8:
Bronze Die-Cast Aluminum Housing
Feature 9:
50,000 Hour Functional Life
Finish Family:
Bronze
Flicker Free:
No
Has Driver:
No
HID Equiv:
250W
Impact Rating (IK):
IK06
Indoor Outdoor:
Outdoor
IP Rating:
IP65
Lens Finish:
Opaque
Lens Material:
Polycarbonate (PC)
Long Description:
Illuminate outdoor spaces with SATCO NUVO's 65-555 architecturally styled LED Full Cutoff Wall Pack. Operating on 120-347V with zero up light, this fixture features wattage selectability of 20W, 40W, and 60W, delivering a maximum output of 8,421 lumens
Material:
Die-Cast Aluminum
Mounting Procedure:
Wall
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Yes - Bypassable
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
5
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Illuminate outdoor spaces with SATCO NUVO's architecturally styled LED Full Cutoff Wall Packs. Operating on 120-347V with zero up light, these cutoff wall packs are perfect to eliminate wasted light and to cut down on light pollution. A by-passable pho
Safety Listing:
cULus
Sensor Operating Temperature:
-25C(-13F) to +50C (+122F)
Sensor Type:
PIR
Short Description:
LED FULL CUTOFF WALL PACK
Specification Notes:
Type II Light Distribution; For International Dark Sky Compliance the fixture CCT must be set to 3000K and installed in a downward facing and locked position
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
7.94
