Item Sales Info
Part Number: 594963
/
Vendor ID Number: 27
/
Custom:
12 Watt T8 LED; Medium bi-pin base; 4000K; 50000 Average rated hours; 1450 Lumens; Type B; Ballast
11
60
Pack Of: 1
WAS
$
17
85
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.00"
Product Overview

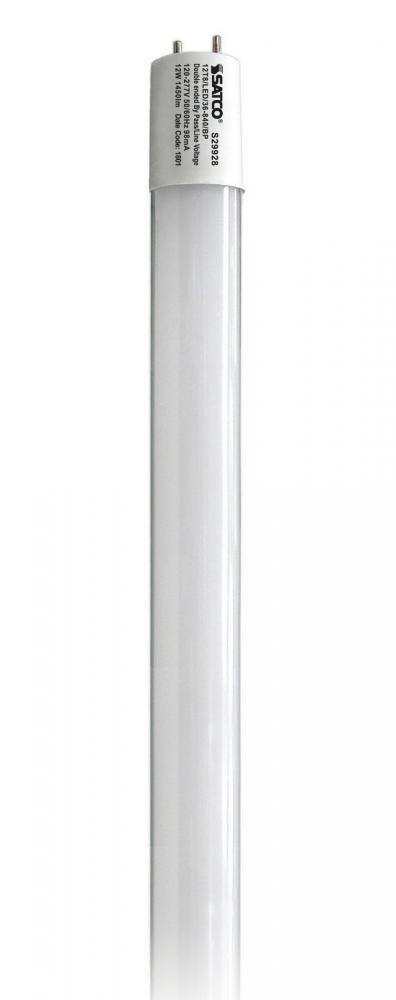

12 Watt T8 LED; Medium bi-pin base; 4000K; 50000 Average rated hours; 1450 Lumens; Type B; Ballast Bypass; Double Ended Wiring
Product Availability
-
Item has been discontinued and is no longer in stock
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White /vendors/vendorImages white.jpg
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
4000K
Bulb Shape:
T8
Diameter:
1
EA Length:
35.4
Harmonized Codes:
8539.50.0051
Length:
36
Lumens:
1450L
Shap Carton Width:
1.18
Ship Carton Height:
1.18
Ship Weight:
0.4
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight:
0.31
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
210
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0285
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
120.83 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Flourescent Equivalent:
25W
Incandescent Equivalent:
60W
Installation Notes:
Not for use in vapor tight fixtures. Existing wiring to both sockets can remain in place. Will work on both shunted or non-shunted sockets.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Material:
Glass
Nominal Length:
36
NSF Approved:
Yes
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Short Description:
12T8/LED/36-840/BP 120-277V
Specification Notes:
Built-in shock resistant circuit - (not hot until both ends are installed)
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Tube Guard Use:
Yes
Wattage Selectable:
No
Watts:
12W
