Part Number: 602731
/
Vendor ID Number: 27
/
Custom:

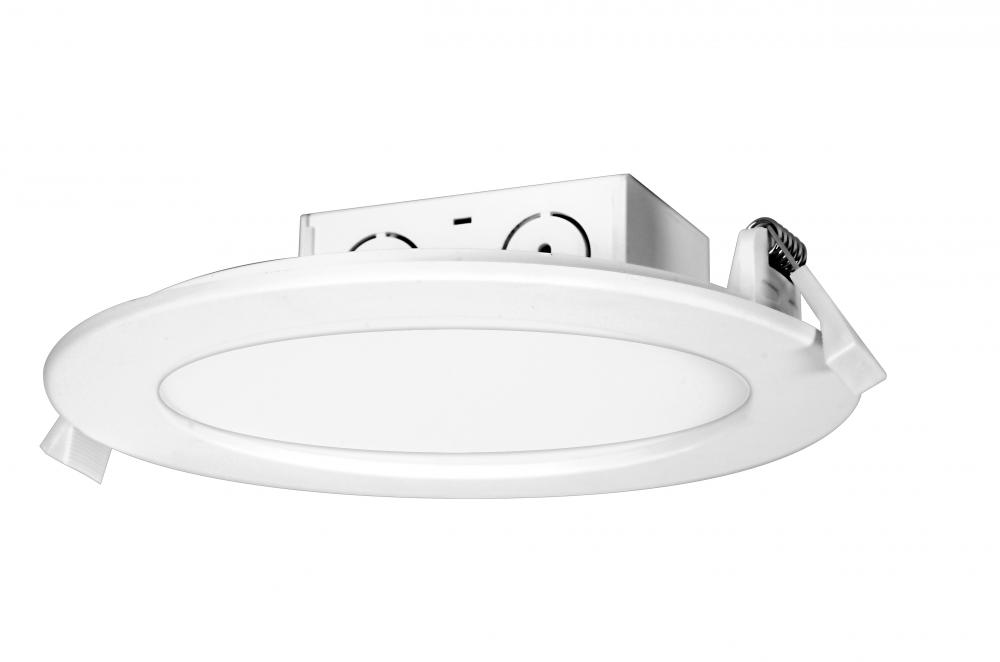

11.6 watt LED Direct Wire Downlight; Edge-lit; 5-6 inch; 3000K; 120 volt; Dimmable
38
12
Pack Of: 1
WAS
$
58
65
12093 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 1.94"
Width: 7.13"
Finish
White
Product Overview
11.6 watt LED Direct Wire Downlight; Edge-lit; 5-6 inch; 3000K; 120 volt; Dimmable
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Bulbs
Other Recessed Ltg.
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Bulb Hours:
40000
Bulb Kelvin:
Warm White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
7.13
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Lumens:
730L
Ship Carton Height:
7.09
Ship Carton Length:
2.64
Ship Carton Width:
8.460000000000001
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.097A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
100
CA Prop-65:
Lead
Carton Cubic Feet:
0.0916
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
6.4375 in. Cutout
Clearance Height:
2.36
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
120V only
Dimming Type:
Phase cut
Efficacy:
62.93 LPW
FCC Compliant:
Yes
Feature 1:
Integrated J-Box for Direct Wire Installation
Feature 2:
Edge-lit Technology
Feature 3:
Damp rated for indoor use
Feature 4:
H:1.94 D:7.13
Feature 5:
H:1.94 D:7.13
Finish Family:
White
Fixture shape:
Round
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
65W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Plastic (PS)
Long Description:
SATCO NUVO's S39062 11.6-watt, LED 5-6 inch recessed fixture is edge lit. The direct wired downlight offers warm white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop
Material:
Thermal Conductive Plastics
Max Drywall Thickness:
3/4 in.
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.97
Quantity In Pack:
1
R9 Value:
58
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's 11.6-watt, LED 5-6 inch recessed fixture is edge lit. The direct wired downlight offers warm white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilin
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
11.6WLED/DW/EL/5-6/30K/120V
Temperature (CCT):
3000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
0.6
